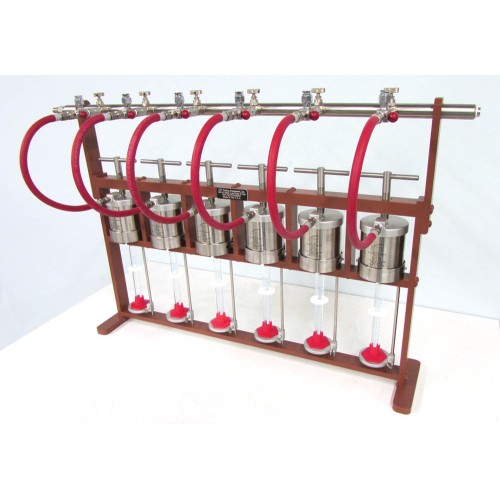

OFI Testing Equipment, Inc. - Filter Press, Low Pressure, 6 Unit

Filter Press, Low Pressure, Bench Mount, with Nitrogen Regulator and Cylinder

Filter Press, Low Pressure, Wall Mount, Half Area, with CO2 Pressure Assembly

Brand: OFI Testing Equipment, Inc.

Product Code: 140-50

Availability: 1

Attachments:
- 140-40_instructions.pdf
- 140-40_brochure.pdf

OFITE's Multi-Unit filter presses are perfect for lab environments when several tests must be run simultaneously. These units come complete with manifolds and all necessary air hoses and bleed-off valves. Suitable for laboratory use, OFITE Filter Presses have become the industry standard for low pressure/low temperature filtration testing.

Features

Stainless steel test cell
Suitable for lab use
Conforms to API specifications

Specifications

Maximum Pressure: 100 PSI (690 kPa)
Pressure Source: Any non-hazardous gas
Number of Units: 6
Filtration Area: 7.1 ± 0.1 in2 (4,580 ± 60 mm2)
Filter Paper Size: 3.5” (9 cm)

Components

#140-55: Filter Paper
#141-00-C: Test Cell
#141-00: Cell Body
#141-01: Base Cap
#141-02: Top Cap
#141-04: Screen
#141-05: Gasket, Neoprene
#141-09: Threaded Insert with Set Screw
#141-10: T-Screw
#141-13: Air Hose, Low Pressure, 15"
#141-19: Air Hose Adapter
#141-22: Felt Filter
#143-06: Safety Bleeder Valve
#153-16: Graduated Cylinder
#170-34: Needle Valve

Optional

#141-15: Air Hose, Low Pressure, 6'
#140-40-SP: Spare Parts Kit for #140-40
#140-50-SP: Spare Parts Kit for #140-50
#153-16: Graduated Cylinder, 25 mL × .2 mL
#171-24-1: Nut for Pressure Fitting, Right-Hand Thread
#171-24-2: Nipple for Pressure Fitting
#170-36: Nitrogen Regulator with Gauges

Part Number

#140-50
