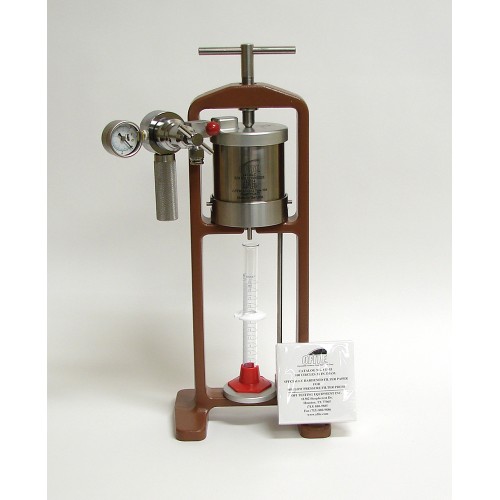

The OFITE Low Pressure Filter Press provides a quick, easy way to evaluate the filtration properties of a drilling fluid.  This instrument consists of a pressure cell, frame, pressure source, filter medium, and a graduated cylinder.  It conforms to API specifications, and is suitable for both field and lab use.

Features

  • Stainless steel test cell
  • Built-in pressure regulator
  • Suitable for field and lab use
  • Conforms to API specifications

Specifications

  • Working Pressure: 100 PSI (689.5 kPa) - CO2 Bulbs sold separately
  • Working Temperature: Ambient
  • Filtration Area 7.1 ± 0.1 in2 (45.8 ± 0.6 cm2)
  • Working Volume: 400 mL
  • Shipping Size: 22” × 14” × 10” (56 × 36 × 25 cm)
  • Approximate Shipping Weight: 25 lb (11.34 kg)

Components

  • #140-55: Filter Paper
  • #141-00-C: Test Cell
  • #141-04: Screen
  • #141-05: Gasket, Neoprene
  • #141-08: Frame
  • #141-09: Threaded Insert with Set Screw
  • #141-10: T-Screw
  • #141-11: Support for Graduated Cylinder
  • #141-12: Support Rod
  • #141-18: Thumb Screw
  • #141-22: Felt Filter
  • #142-10: CO2 Pressuring Assembly
  • #153-16: Graduated Cylinder

Optional

  • #140-30-SP: Spare Parts Kit
  • #141-00-1: Cell Body, Acrylic
  • #143-05: CO2 Bulbs, Box of 10, UN2037
  • #155-10: Interval Timer, 30 Minutes

Part Number

  • #140-30
