OFI Testing Equipment, Inc. - Filter Press, HTHP, 175 mL, 4 Unit, Basic

HTHP Filter Press with Threaded Cells, 175 mL, Drilling Fluids, N2 Pressure

Product Code: 170-00-4

Availability: Call for availability

Attachments:
- 170-00-4_brochure.pdf

The unitized HTHP Filter Press is designed for testing drilling fluids and cement under elevated temperatures and pressures. This simulates various down-hole conditions and provides a reliable method for determining the effectiveness of the material being tested. All filter press units are complete and ready for use after the assembly has been connected to a source (bottle) of compressed nitrogen.

Features

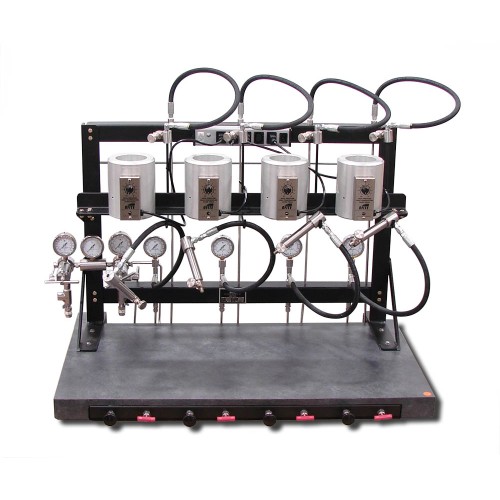

Four standard 175 ml filter press mounted in a convenient installation for regular laboratory or drilling rig usage
Includes a dual nitrogen manifold for supplying up to 1250 PSI pressure to the cell and up to 750 PSI to the back pressure assemblies
All four (4) units are supplied nitrogen at the same pressures
Both the high pressure to the cell and the back pressure can be controlled ON/OFF individually by valves mounted at the front of the work table base
High performance hoses, connections and valves
Dual manifold back connection assembly has a standard ¼" pipe thread (NPT) with a ¼" tubing fitting
Easily configured for other filter devices and pressurization

Specifications

Maximum Temperature: 400°F (204.4°C)
Maximum Cell Pressure: 1250 PSI (8618 kPa)
Maximum Back Pressure: 750 PSI (5171 kPa)
Test Cell Capacity: 175 mL
Dual Manifold Assembly: ¼" pipe thread (NPT)
Size: 39.25" × 25.75" × 37.5" (100 × 65 × 95 cm)
Weight: 175 lb. (79.5 kg)
Power Requirement: 115 Volt/230 Volt

Components

#153-14: Graduated Cylinder
#154-10: Thermometer with Metal Dial, 5" Stem, Dual Scale: 50° - 500°F / 0° - 250°C
#170-05: Thermostat
#170-06-1: Back Pressure Receiver
#170-12-2: Test Cell for Filter Paper, Single Cap
#170-19: Filter Paper, 2.5" (6.35 cm) Diameter, Box of 100
#170-20: Manifold Block
#170-35: Adjustable Wrench
#171-25-1: Relief Valve, 750 PSI
#171-25-2: Relief Valve, 1350 PSI
#171-38: Gauge for Back Pressure, 1000 PSI
#171-42: Gauge for Nitrogen Supply, 3000 PSI
#171-40: Gauge for Top Pressure, 1500 PSI

Optional

#143-00-1: Diaphragm for Regulator
#143-07: Regulator Repair Kit
#170-00-4-SP: Spare Parts Kit
#170-37: Nitrogen Cylinder
#170-40: Cell Carrying Tool
#170-91: HTHP Pressure Relief Tool
#171-190-028: Cell Stand
#171-24: Dual Nitrogen Manifold

Part Numbers

#170-00-4: 115 Volt
#170-00-4-230: 230 Volt
