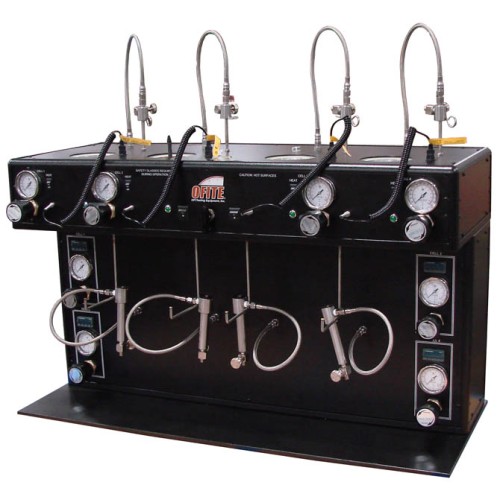

Filter Press, HTHP, 175 mL, 4 Unit, with Regulators and Temperature Controllers

The new 4-Unit HTHP (also known as HPHT) Filter Press from OFITE is ideal for high-volume laboratory testing. It accommodates four 175-mL HTHP filter press cells. Each cell has a separate electronic temperature controller and two separate pressure regulators (drive pressure and back pressure). This allows each cell to be heated and pressurized independently, while still sharing a single pressure source.

Features

• Four independent test stations
• Electronic temperature control
• Drive pressure and back pressure regulators for each cell
• Single pressure source
• Complete with all accessories necessary to run four simultaneous tests

Specifications

• Maximum Temperature: 425°F (218.3°C)
• Maximum Drive Pressure: 1,350 PSI (9.3 MPa)
• Maximum Back Pressure: 750 PSI (5.2 MPa)
• Cell Size: 175 mL (test cells sold separately)
• Pressure Requirements: 3,000 PSI (20.7 MPa)
• Power Requirements: Two 115-Volt or 230-Volt AC Power Sources

Components

• #120-70-1-021: Gauge for Back Pressure, 1000 PSI
• #120-70-1-022-1: Gauge for Top Pressure, 1500 PSI
• #120-70-1-052: Hose, Stainless Steel
• #153-14: Graduated Cylinder
• #170-06-1: Back Pressure Receiver
• #170-19: Filter Paper, 2.5" (6.35 cm) Diameter, Box of 100
• #170-20: Manifold Block
• #170-93: Wrench for Valve Stem
• #171-23-1: Safety Pin with Lanyard
• #171-45-7: Thermocouple
• #174-03: Temperature Controller

Optional

• #170-12-2: Test Cell for Filter Paper, 175 mL, Single Cap
• #170-40: Cell Carrying Tool
• #170-45: Test Cell with Cement Screens, 175 mL, Locking Screws, Double Cap
• #170-46: Test Cell for Ceramic Disks, 175 mL, Locking Screws, Double Cap
• #170-181-S: Test Cell for Drilling Fluids, 175 mL, Threaded
• #170-182-S: Test Cell for Cement, 175 mL, Threaded
• #171-190-028: Cell Stand
• #170-91: HTHP Pressure Relief Tool
• #170-00-4S-SP: Spare Parts Kit
• #170-00-4S-LC: Load Cell Option

Part Numbers

• #170-00-4S: 115 Volt
• #170-00-4S-230: 230 Volt
