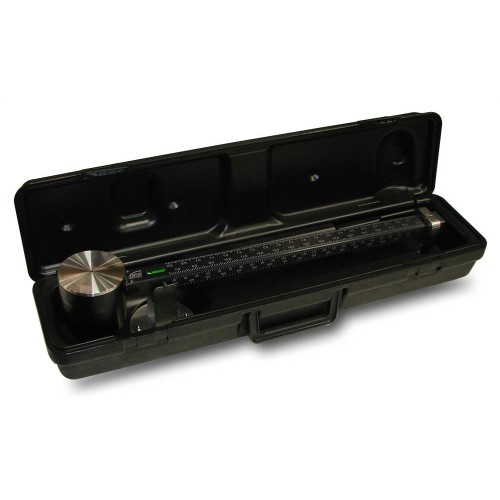

Mud Balance, 4 Scale, Metal
Brand:
OFI Testing Equipment, Inc.
Product Code:
115-00
Availability:
9
The 4-scale Metal Mud Balance features a Computer Numerically Controlled (CNC) all-machined manufacturing process, instead of the old die-cast molded method which has been used for years. This uniform method of construction results in a much stronger, more rugged instrument that sets the industry standard for accuracy, and is easier to calibrate. The zinc-aluminum alloy anodized beam is corrosion resistant and the laser-etched finish is easily cleaned and promotes clear, accurate readings. This truly represents the "next generation" of mud balance design, and will result in many years of useful service.
Features
- Density Measurement Ranges:
- 6.5 - 23.0 lbs/gal
- 0.79 - 2.72 specific gravity
- 49 - 172 lbs/ft3
- 340 - 1190 PSI/1000 ft
- Includes rugged carrying case
Components
- #100-25-2: Rider
- #100-29: Level Bubble Vial
- #100-40: Carrying Case
- #100-56: Steel Shot for Calibrating
- #115-06: Lid
- #115-22: Base
- #115-32: Knife Edge
- #115-34: Shotwell
Optional
- #115-01: Metal Mud Balance Without Case
Specifications
- Size: 21.5" × 4.5" × 4" (55 × 11 × 10 cm)
- Weight: 4 lb 3 oz (1.9 kg)
Part Numbers
- #115-00
