Product Code: 130-87
Availability: 3

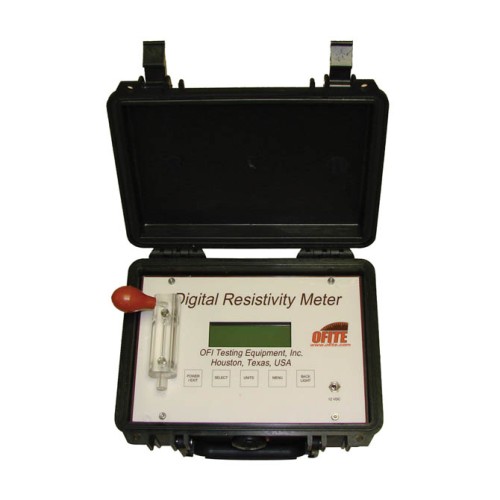

The OFITE Digital Resistivity Meter accurately measures the resistivity of fluids, slurries, and semisolids having resistivities from 0.01 to 400 ohm-meters. The digital display shows both resistivity
(in ohm-meters) and concentration of NaCl (in ppm, kppm, and gr/gal), as well as temperature (in °C or °F).

Features

  • Equipped with a digital readout for higher accuracy
  • LCD display makes measurements easy to read
  • Built-in calibration tests make calibrations simple
  • Automatic NaCl Measurements - no longer have to manually use a nomograph
  • Lucite® Cell - transparent and removable, making it easy to clean

Specifications

  • Resistivity Range - 0.01 to 400 Ohm-Meters
  • Temperature Range - 14 to 140°F (-10 to 60°C)
  • NaCl Measurements - ppm, kppm, gr/gal
  • NaCl Range - 0.2 to 300 kppm
  • Power Requirements - Two 9-Volt Batteries

Components

  • #130-76-42: Display
  • #130-85-04: Rubber Suction Bulb
  • #130-87-05: Resistivity Probe
  • #147-02: Battery, 9 Volt, Alkaline
  • #165-43: Pipe Cleaner

Optional

  • #130-10-30: Power Supply
  • #130-87-014: Calibration Fluid, 1,413 µmhos, 1 L
  • #130-87-016: Calibration Fluid, 50,000 µmhos, 1 L
  • #152-37: AC Power Cord, 115 Volt
  • #152-38: AC Power Cord, 230 Volt
