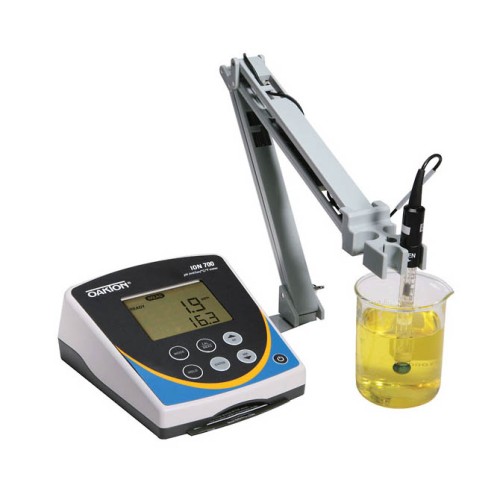

Ion 700 Meter, pH/mv/Ion/Temp

Features

• Small footprint saves bench space
• Direct readout of ion concentration in ppm
• Oversized dual display for easier viewing
• Features 0.1 mV resolution for ORP measurements
• Simultaneous display of ppm and mV electrode output in the ion mode
• Selectable buffer sets and five-point pH calibration with auto buffer recognition
• Works with many ion-selective electrodes
• Built-in electrode stand
• Selectable manual or automatic temperature compensation
• Built-in memory function
• Hold function, “Ready” indicator, diagnostic messages
• Slide-out instruction card for quick reference

Specifications

• Measuring Parameters: ph, mV, Ion concentration, Temperature
• pH:
  • Range: -2.00 to 16
  • Resolution: 0.01
  • Accuracy: ±0.01
  • Calibration: Up to 5 points
• Millivolt:
  • Range: ±2000 mV
  • Resolution: 0.1 mV from ±199.9 mV
  • Accuracy: 1 mV beyond ±199.9 mV
  • Calibration: Offset up to ± 150 mV
• Ion:
  • Range: 0.01 - 2000 ppm
  • Resolution: 0.01 ppm / 0.1 ppm / 1 ppm
  • Accuracy: ±0.5% of reading (monovalent) ±1.0% of reading (divalent)
  • Calibration: From 2 to 5 points
• Temperature:
  • Range: 0.0° - 100.0°C (32° - 212°F)
  • Resolution: 0.1°C (0.1°F)
  • Accuracy: ±0.3°C (±0.5°F)
  • Calibration: Offset 0.1°C Increments
  • Temperature Compensation Automatic or Manual, 0 - 100°C

Part Number

• #147-04
