Multimixer, 5 Spindle, Single Speed
Brand:
Product Code:
152-50
Availability:
1

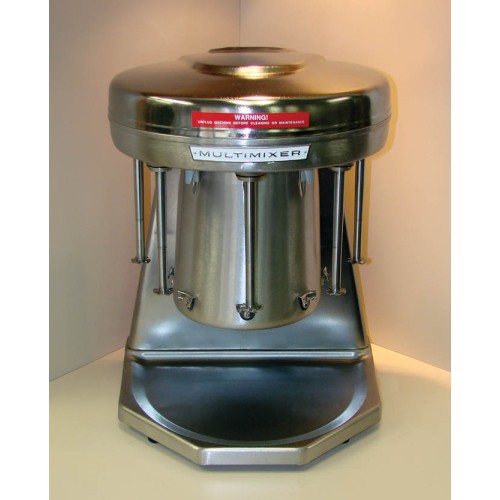

The Multimixer is a Model 9B five spindle, single speed mixer for drilling fluids. Each spindle is fitted with a single sine-wave impeller (9B29X) approximately 1" (25 mm) in diameter mounted flash side up.
This mixer meets API Specification 13A for mixing drilling fluids.
Specifications
- Speed: 11,500 RPM (no load)
- Complies with API Spec 13A
- Size: 22" × 18" × 14" (56 × 46 × 36 cm)
- Weight: 71 lb (32.2 kg)
Optional
- #152-40: Mixing Cup, Stainless Steel, 30 oz
Part Numbers
- #152-50: 115 Volt, 60 Hz
- #152-52-1: 230 Volt, 50 Hz (U.S. Patents No. 10,686,396 B2 and No. 11,018,613 B2)
