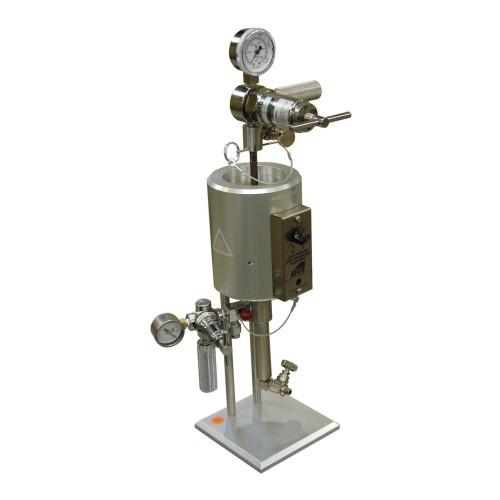

Filter Press, HTHP, 175 mL, Double Capped Cell for Ceramic Disks, CO2 Pressure

Brand: OFI Testing Equipment, Inc.

Product Code: 170-00-7

Availability: Call for availability

Attachments:
- 170-00-7_instructions.pdf

Available Options

Voltage_170-00-7:
115 Volt (170-00-7)
230 Volt (170-01-6)

Specifications

Cell Capacity: 175 mL
Cell: Grub Screws, Double Cap, for Ceramic Disks
Maximum Cell Pressure: 1,500 PSI
Maximum Temperature: 350°F (176.7°C)
Pressure Source: CO₂ Bulbs

Components

#153-14: Graduated Cylinder, 50 mL × 1 mL, Glass
#154-10: Thermometer with Metal Dial, 5" Stem, Dual Scale: 50° - 500°F / 0° - 250°C
#170-00-1: Heating Jacket, 115 Volt
#170-01-1: Heating Jacket, 230 Volt
#170-04: CO₂ Pressurization Unit
#170-06: Back Pressure Receiver, 15 mL
#170-19: Filter Paper, 2.5", Box of 100
#170-35: Adjustable Wrench, 6"
#170-46: Test Cell for Ceramic Disks, 175 mL, Locking Screws, Double Cap

Optional

#143-05: CO₂ Bulbs, Box of 10, UN2037
#143-07: Regulator Repair Kit
#170-03: Carrying Case, Stainless Steel

Size: 7.5" × 11" × 23.5" (19 × 28 × 60 cm)
Weight: 38 lb (17.2 kg)

Part Numbers

#170-00-7: 115 Volt
#170-01-6: 230 Volt
