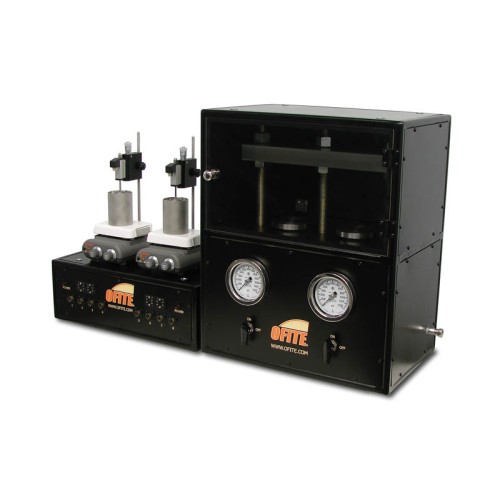

Dynamic Linear Swell Meter with Compactor and Computer

The Dynamic Linear Swell Meter is designed to simultaneously test up to four drilling fluids (expandable to eight) on a representative shale sample for extended periods of time at temperatures up to 180°F. The Linear Swell Meter is the only swell meter on the market capable of dynamically testing your fluids, so you obtain the most accurate data possible.

Features

• Dynamic - Drilling fluid constantly circulates around the sample.
• Efficient - Can measure up to four drilling fluids (expandable to eight) simultaneously.
• Durable - Manufactured from 316 Stainless Steel.
• Electronic Data - LVDT measures expansion of sample.
• Complete - Includes dies and hydraulic press for making shale sample wafers.
• Realistic - Fluid is in contact with the wafer from all sides.

Specifications

• Size: 20.5” × 14.5” × 25” (52 × 37 × 64 cm)
• Weight: 220 lb (100 kg)
• Swell Meter and Compactor:
• Crated Size: 27” × 21” × 47” (65 × 53 × 120 cm)
• Crated Weight: 312 lb (142 kg)
• Instrument Control:
• Crated Size: 37” × 20” × 32” (94 × 51 × 81 cm)
• Crated Weight: 235 lb (107 kg)

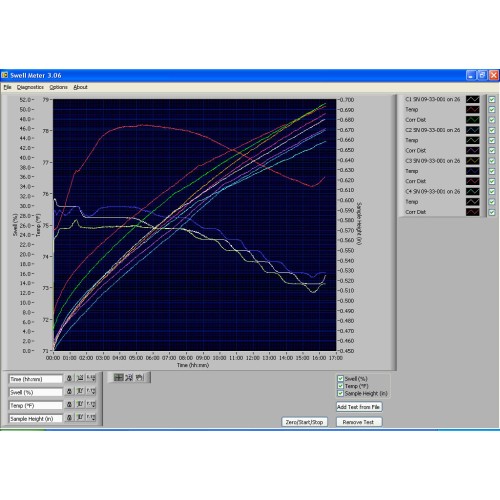

Software Features

• Computer-Controlled - Logs, analyzes, and updates data real-time so you don’t have to!

Swell Meter Components

• #130-75-73: Laptop Computer
• #130-76-03: Thermocouple
• #130-79-06: DAQ Cable
• #150-80-009: Weight
• #150-80-03: Screen, Flat, 1 1/16" Diameter
• #150-80-031: Washer (Spacer), Teflon®
• #150-80-032: Transfer Stand
• #150-80-033: Wafer Tube
• #150-80-034: Main Plate
• #150-80-035: Cup
• #150-80-036: Cap
• #150-80-064: LVDT
• #150-80-067; Micrometer
• #150-80-101: Calibration Block, Multi Point
• #150-83: Stirring Hot Plate, 115 Volt
• #150-84; Stirring Hot Plate, 230 Volt
• #152-37: AC Power Cord, 115 Volt
• #152-38: AC Power Cord, 230 Volt
• #153-67: Syringe, Disposable, 60 cc

Compactor Components

• #122-224: Valve
• #150-80-072: Pump
• #150-80-075: Hose
• #150-80-085: Spacer for Wafer Mold, 1/2"
• #150-80-086: Spacer for Wafer Mold, 3/4"
• #150-80-087: Body for Wafer Mold
• #150-80-088: Plunger for Wafer Mold
• #150-80-089: Drop Tube for Wafer Mold
• #150-85: Relief Valve, 2,900 PSI (20 MPa)

Optional

• #150-81-1: Swell Meter Expansion, Single Unit, 115 Volt Only
• #150-81-2: Swell Meter Expansion, Single Unit, 230 Volt Only

Part Numbers

• #150-80: 115 Volt
• #150-80-1: 230 Volt
